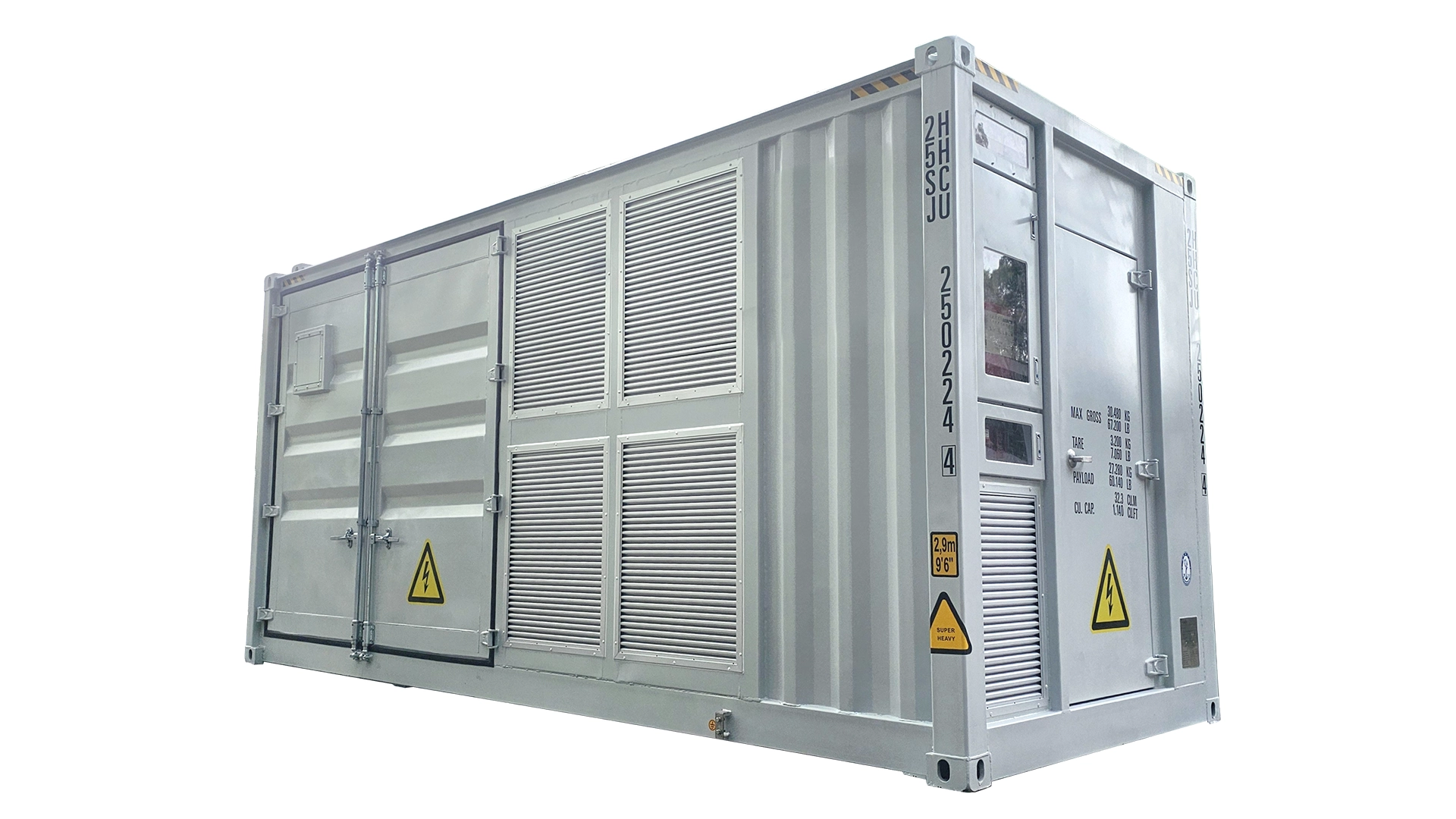

Battlink introduces its 1.2MWh Micro-grid Air-cooled ESS, an “All-in-one” battery energy storage system (BESS) designed for diverse applications in the commercial and industrial (C&I) sectors, as well as for grid regulation. This C&I ESS efficiently stores and releases electrical energy, ensuring stable and reliable power supply through integration with PV and other renewable energy sources.
Key Features and Benefits:
- Safe and Reliable: The system boasts a robust configuration for resilient operation and features an efficient thermal management design along with an active fire protection system utilizing Perfluorohexanone, ensuring paramount safety.
- Intelligent and User-Friendly: It offers seamless on-grid and off-grid switching for uninterrupted power supply to loads. The built-in Energy Management System (EMS) provides multiple operating modes, optimizing revenue generation.
- Easy Installation & Flexible Configuration: Designed for simple on-site construction, this BESS has an IP54 protection level, making it suitable for outdoor installations. It supports parallel use of multiple units and simultaneous integration with grid, diesel, PV, and battery sources.
Technical Specifications:
The 1.2MWh Micro-grid Air-cooled ESS (Model: BATT-GS-500/1205-M) is designed for both on-grid and off-grid applications.
- Battery Parameters:
- Cell Type: LFP 3.2V/314Ah
- Battery System Capacity: 1205.76 kWh
- Nominal Voltage: 768V (Range: 648-864V)
- Cycle Life: 6000 cycles
- PV Parameters:
- Max. Input Power: 660kW, 600kW, 720kW (depending on configuration)
- MPPT Operating Voltage Range: 250-640V
- Number of MPPT: 10, 11, or 12
- AC Output Parameters:
- Nominal Power: 500kW
- Nominal Voltage: 400V
- Nominal Frequency: 50Hz/60Hz
- System Parameters:
- System Efficiency: 86%
- Temperature Control: Air Cooling
- Operation Temperature: -20~+55°C (>45°C derating)
- Dimensions (LWH): 6058mm2438mm2896mm
- Weight: 19T
- Degree of Protection: IP54
- Communication Interface: Ethernet (Modbus TCP/IP protocol)
- Max. Parallel Quantity (off-grid): 4 units
Certifications:
The system is certified with UN38.3, MSDS, IEC 62619, EN 62477, EN IEC 61000-6-2/EN IEC 61000-6-4, EN 62109-1/EN 62109-2, 699, EN 50549-1, NRS 097-2-1, IEC 62116/IEC 61727, and IEC 61683.
For more information on this cutting-edge commercial and industrial energy storage solution, visit www.battlink.com.
