Unleashing High-Efficiency Energy Solutions

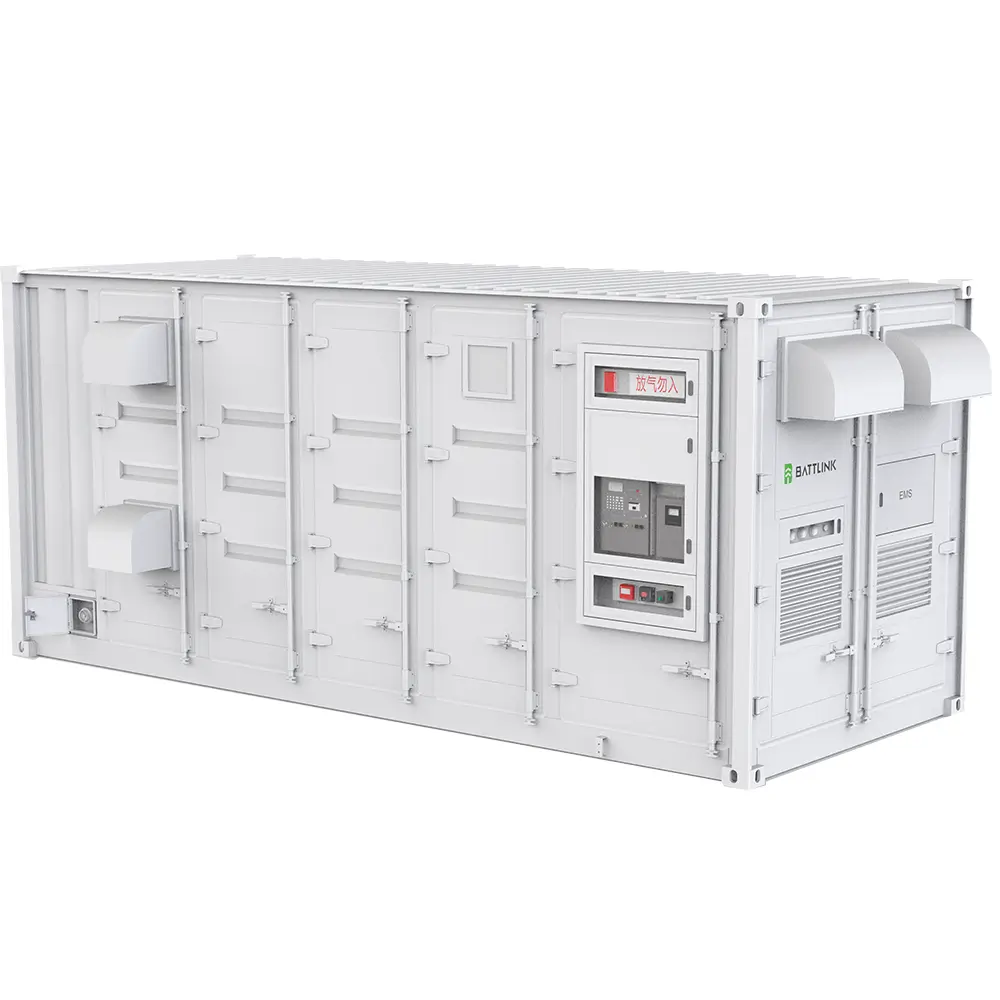

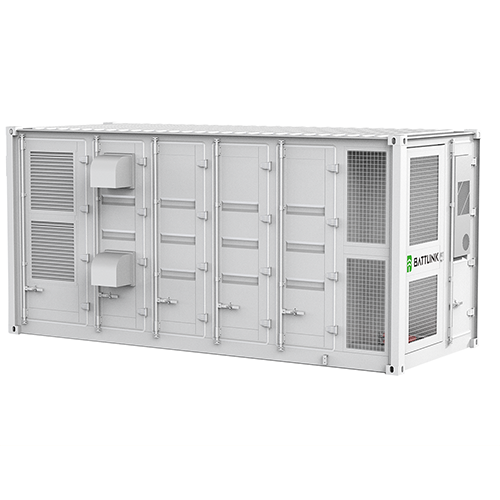

The BATTLINK 2.4 MWh Liquid-Cooled Commercial & Industrial Energy Storage System (ESS) delivers advanced energy storage capabilities, ensuring superior performance, safety, and efficiency for large-scale applications. Designed to meet the dynamic needs of industrial and commercial sectors, this system optimizes energy management while reducing operational costs and environmental impact.
Key Features:
1. High Energy Density & Modular Design:
- 2.4 MWh capacity in a compact footprint, maximizing space utilization.
- Scalable architecture allows for seamless expansion to meet growing energy demands.
2. Advanced Liquid Cooling Technology:
- Intelligent liquid-cooling system enhances thermal management, ensuring consistent temperature control and extending battery lifespan.
- Improved energy efficiency and reduced maintenance requirements.
3. Safety & Reliability:
- Multi-layer safety protection with real-time monitoring and early fault detection.
- Compliance with international safety and quality standards (e.g., UL, IEC, UN38.3).
4. Intelligent Energy Management System (EMS):
- Real-time data analysis and remote monitoring for optimized energy usage.
- Smart grid compatibility facilitates load shifting, peak shaving, and renewable energy integration.
5. Cost-Effective & Sustainable:
- Reduces electricity costs through peak demand management and energy arbitrage.
- Supports carbon neutrality goals with clean, renewable energy storage.
Applications:
- Industrial and Commercial Facilities
- Renewable Energy Integration
- Microgrids and Backup Power
- Data Centers and EV Charging Stations
Battery Specifications
| System Rated Energy | 2411kWh | |||
| Rated Voltage | 768V | |||
| Voltage Range | 696V~852V | |||
| Battery Type | LFP,3.2V314Ah | |||
| Battery Configuration | 48S1P | |||
| Battery System Configuration | 240S10P | |||
| Cycle Life | 6000 | |||
AC Output Specifications
| Rated Power | 1200kW | |||
| Rated AC Voltage | 380/400Vac | |||
| Rated Grid Frequency | 50/60Hz | |||
| Maximum Input Current | 1732A | |||
| Power Factor | -0.99~0.99 | |||
System Parameters
| Fire Protection System | Perfluorohexanone | |||
| Protection Rating | IP55 | |||
| Cooling Method | Liquid Cooling | |||
| Operating Temperature Range | -20~+60℃ | |||
| Operating Humidity Range | 0-95% | |||
| Operating Altitude | ≤4000m | |||
| System Communication Interface | RS485,Ethemet | |||
| System Communication Method | Modbus-RTU,Modbus-TCP | |||
| Weight | 24T(529111b) | |||
| Dimensions (WxDxH) | 6058*2438*2896mm(238.5*96*114inch) | |||
| Complies with Standards | UN38.3,EN50549-1,EN50549-2,IEC62619,IEC62477,IEC/EN 61000-6-2,IEC/EN 61000-6-4 | |||
Note: The product is constantly iterating, and performance is continuously improving. The technical specifications provided are for reference only.
